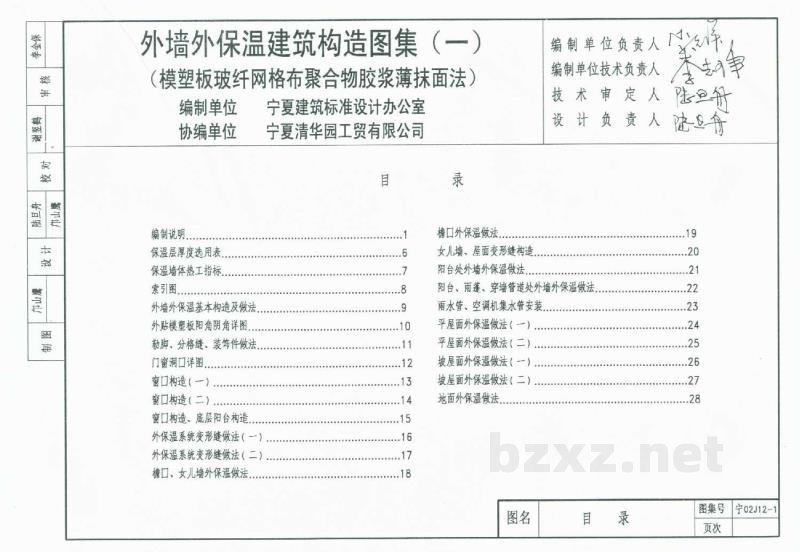

宁02J12-1 外墙外保温建筑构造图集（一）模塑板玻纤网格布聚合物胶浆薄抹面法

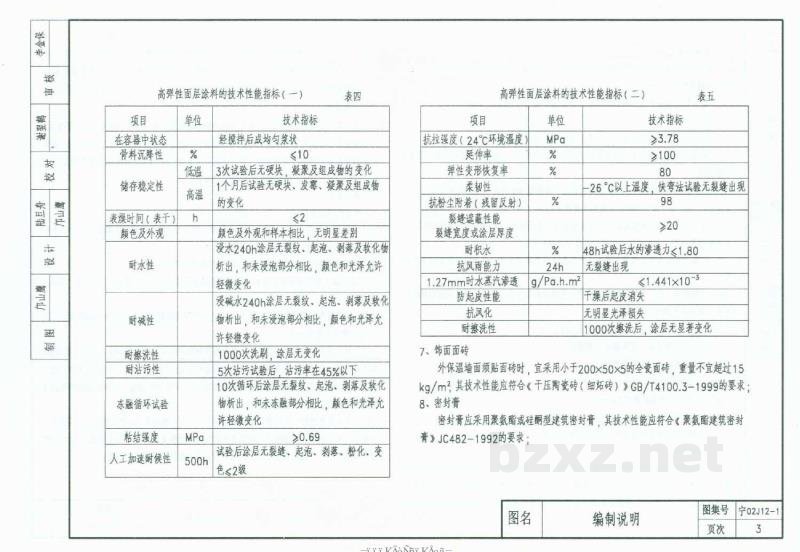

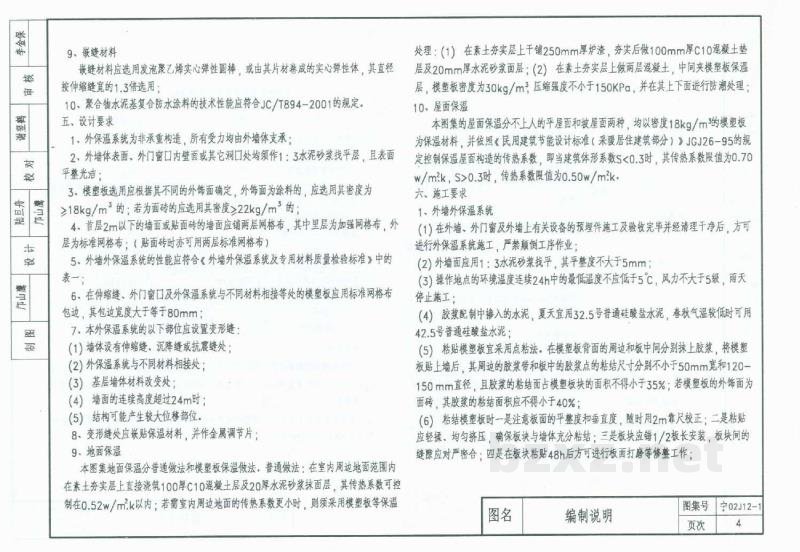

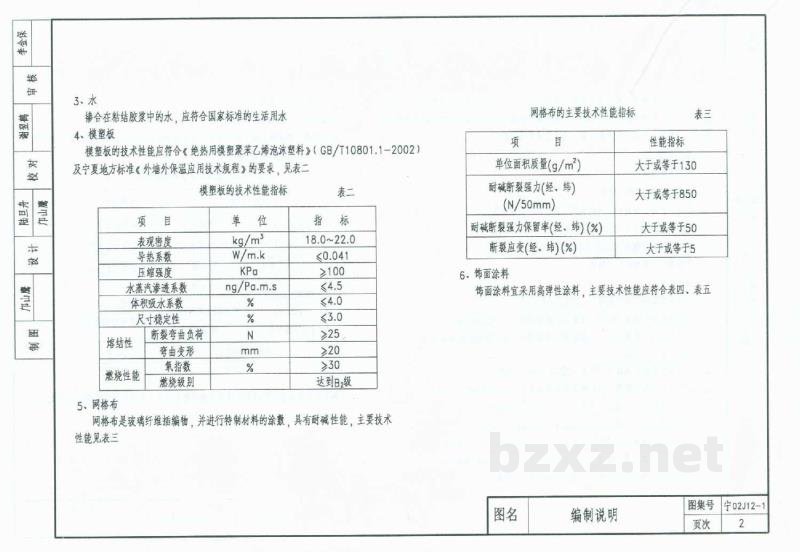

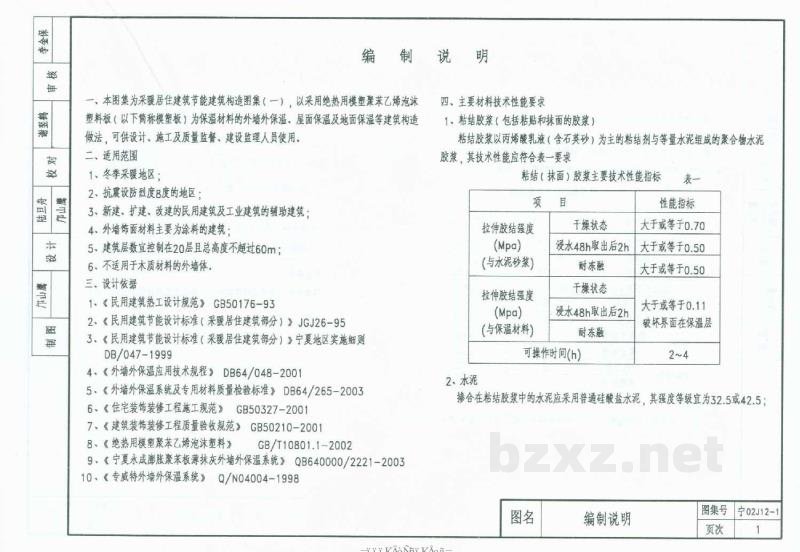

编制说明..................................................1

保温层厚度选用表..............................6

保温墙体施工指标....................................7

索引图.................................................8

外墙外保温基本构造及做法.......................9

外挂模聚苯板阳角加强详图......................10

粘附、分格缝、装饰件做法....................11

门窗洞口详图........................................12

窗口构造（一）...................................13

窗口构造（二）...................................14

窗口构造、底面阳台构造....................15

外保温系统变形缝做法（一）.................16

外保温系统变形缝做法（二）.................17

檐口、女儿墙外保温做法......................18

檐口外保温做法...................................19

女儿墙、层窗变形缝构造....................20

阳台处外墙外保温做法..........................21

阳台、雨篷、空调管进出处外墙外保温做法......22

雨水管、空调机集水管安装...................23

平屋面外保温做法（一）.......................24

平屋面外保温做法（二）.......................25

坡屋面外保温做法（一）.......................26

坡屋面外保温做法（二）.......................27

地面外保温做法...................................28
