GB/T 3003—2006.
1 Scope

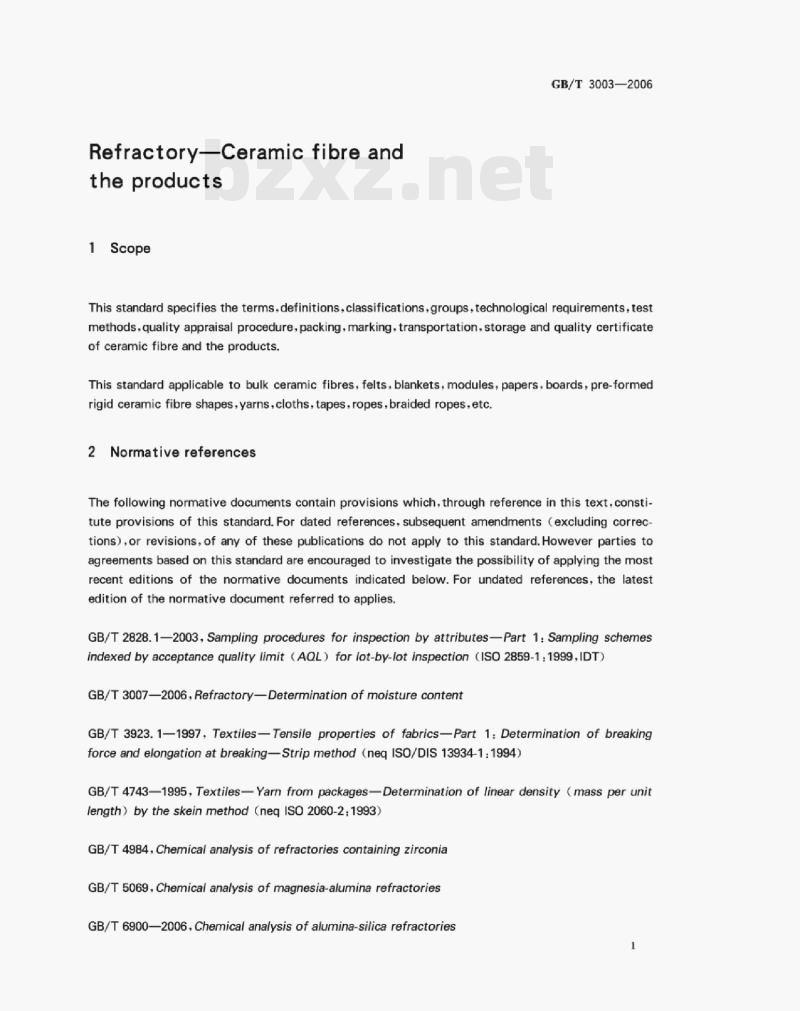

This standard specifies the terms,definitions,classifications,groups, technological requirements,testmethods.quality appraisal procedure, packing , marking, transportation,storage and quality certificateof ceramic fibre and the products.
This standard applicable to bulk ceramic fibres, felts, blankets, modules, papers, boards, pre-formedrigid ceramic fibre shapes, yarns,cloths, tapes,ropes,braided ropes,etc.
2Normative references
The following normative documents contain provisions which, through reference in this text,consti-tute provisions of this standard.For dated references, subsequent amendments ( excluding correc-tions) ,or revisions, of any of these publications do not apply to this standard.However parties toagreements based on this standard are encouraged to investigate the possibility of applying the mostrecent editions of the normative documents indicated below.For undated references， the latestedition of the normative document referred to applies.
GB/T 2828.1—2003,Sampling procedures for inspection by attributes—Part 1: Sampling schemesindexed by acceptance quality limit (AQL) for lot-by-lot inspection (ISO 2859-1:1999,IDT)
GB/T 3007—2006,Refractory—Determination of moisture content

ICS81.080

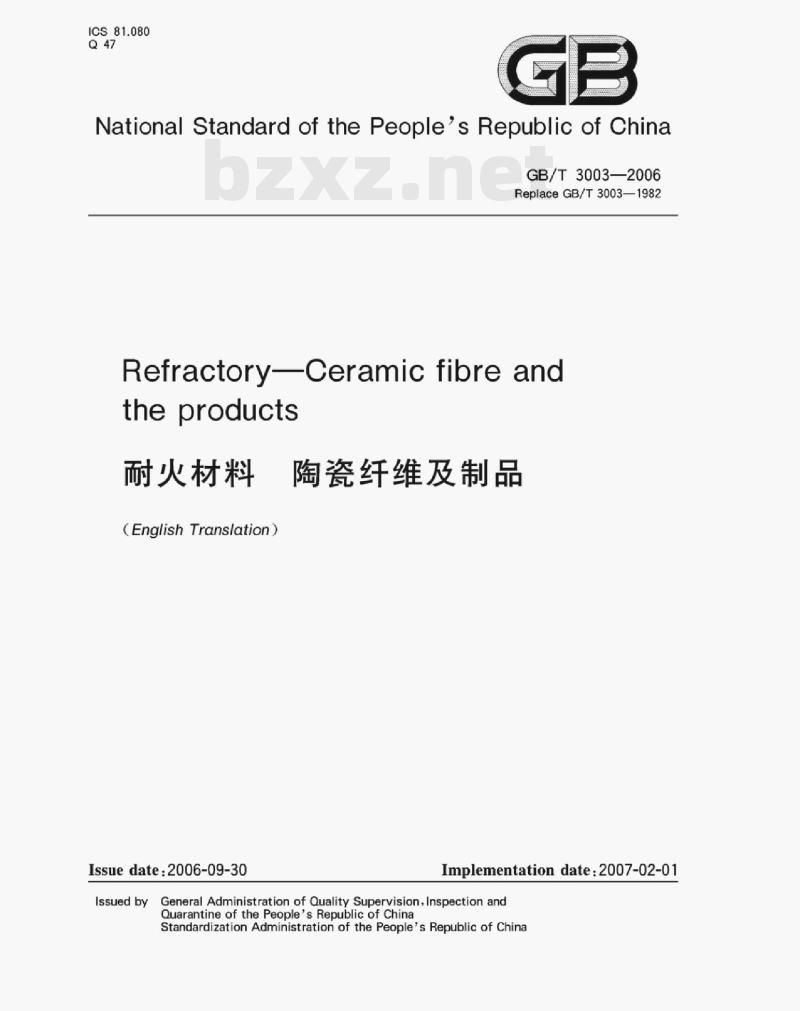

National Standard of the People's Republic of ChinaGB/T3003—2006
ReplaceGB/T3003—1982
RefractoryCeramicfibreand
the products
耐火材料
（EnglishTranslation）
Issuedate:2006-09-30
陶瓷纤维及制品
Implementation date:2007-02-01Issued by General Administration of Quality Supervision,Inspection andQuarantineof thePeople's Republicof ChinaStandardization Administration of the People's Republic of ChinaForeword
GB/T3003—2006
SAC/TC 193 is in charge of this English translation.In case of any doubt about the contents of Englishtranslation,the Chinese original shall be considered authoritativeIn this revision,refractory ceramic fibre products are classified according to the principle of EN 10943:2oo3 Insulating refractory products-Part 3:Classification of insulating products made from ceramicfibres

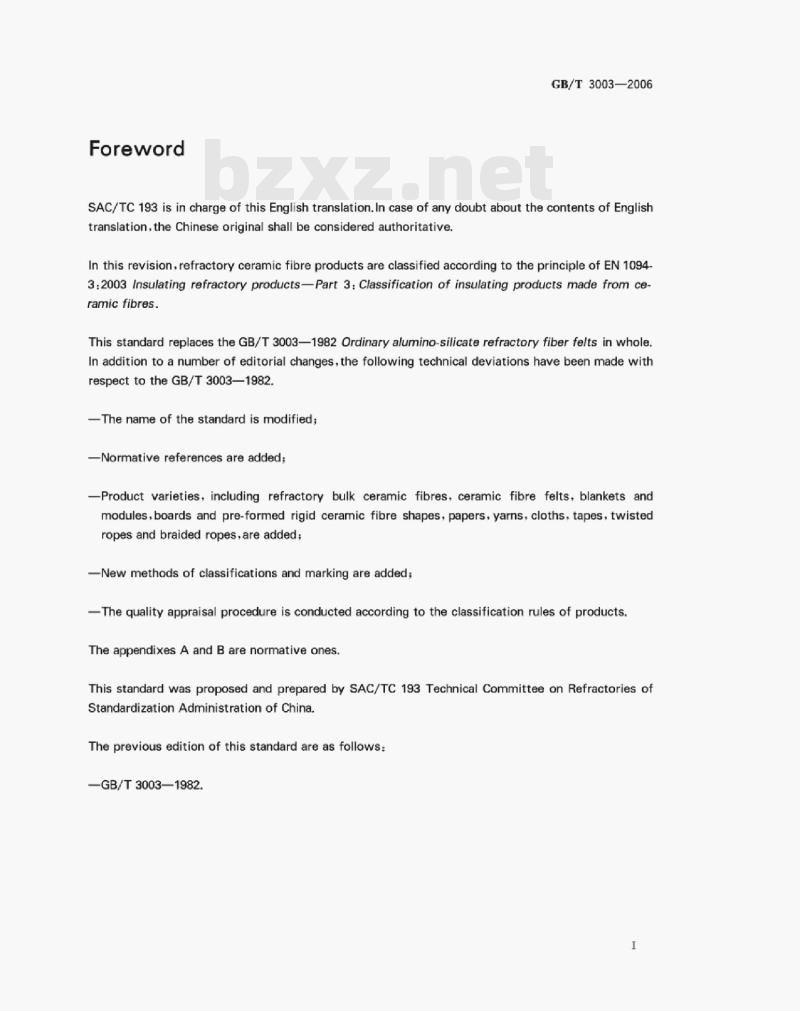

This standard replaces the GB/T 3003-1982 Ordinary alumino-silicate refractory fiber fe/ts in whole.In addition to a number of editorial changes,the following technical deviations have been made withrespect to the GB/T3003-—1982.Thenameof thestandard ismodifiedNormativereferencesareadded
-Product varieties,including refractory bulk ceramic fibres,ceramic fibre felts,blankets andmodules,boards and pre-formed rigid ceramic fibre shapes,papers,yarns,cloths,tapes,twistedropes and braided ropes,are added;NewmethodsofclassificationsandmarkingareaddedThe qualityappraisal procedure is conductedaccording to the classification rulesof products.The appendixes Aand B are normative ones.This standard was proposed and prepared by SAC/TC 193 Technical Committee on Refractories ofStandardization Administration of China.The previous edition of this standard are as follows:—GB/T3003—1982.
GB/T3003-—2006
Introduction

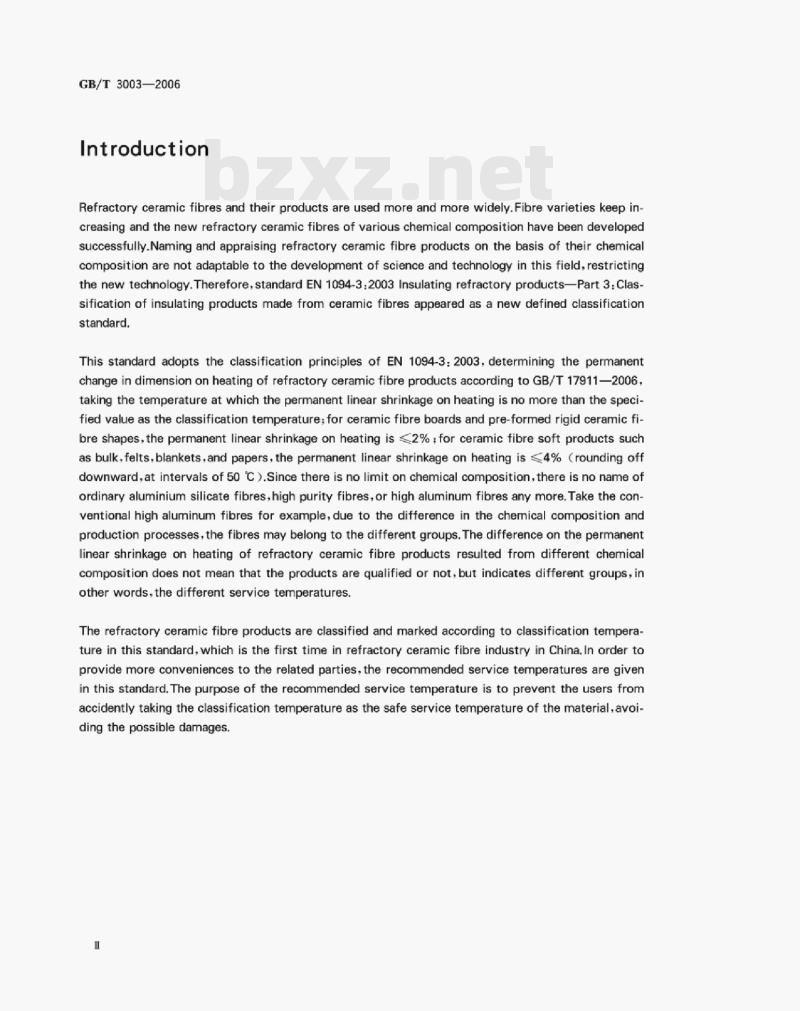

Refractory ceramic fibres and their products are used more and more widely.Fibre varieties keep in-creasing and the new refractory ceramic fibres of various chemical composition have been developedsuccessfully.Naming and appraising refractory ceramic fibre products on the basis of their chemicalcomposition are not adaptable to the development of science and technology in this field,restrictingthe new technology.Therefore,standard EN 1094-3:2003 Insulating refractory products-Part 3:Clas-sification of insulating products made from ceramic fibres appeared as a new defined classificationstandard
This standard adopts the classification principles of EN 1094-3:2003, determining the permanentchange in dimension on heating of refractory ceramic fibre products according to GB/T 17911-2006,taking the temperature at which the permanent linear shrinkage on heating is no more than the speci-fied value as the classification temperature;for ceramic fibre boards and pre-formed rigid ceramic fi-bre shapes,the permanent linear shrinkage on heating is <2%;for ceramic fibre soft products suchas bulk,felts,blankets,and papers,the permanent linear shrinkage on heating is <4% (rounding offdownward,at intervals of 50 C).Since there is no limit on chemical composition,there is no name ofordinary aluminium silicate fibres,high purity fibres,or high aluminum fibres any more.Take the con-ventional high aluminum fibres for example,due to the difference in the chemical composition andproduction processes,the fibres may belong to the different groups.The difference on the permanentlinear shrinkage on heating of refractory ceramic fibre products resulted from different chemicalcomposition does not mean that the products are qualified or not,but indicates different groups,inother words,the different service temperatures.The refractory ceramic fibre products are classified and marked according to classification tempera-ture in this standard,which is the first time in refractory ceramic fibre industry in China.In order toprovide more conveniences to the related parties,the recommended service temperatures are givenin this standard.The purpose of the recommended service temperature is to prevent the users fromaccidently taking the classification temperature as the safe service temperature of the material,avoi-ding the possible damages.
Refractory-Ceramicfibreand
the products
GB/T3003—2006
This standard specifies the terms,definitions,classificationsgroups,technological requirements,testmethods.quality appraisal procedure,packing,marking.transportation.storage and quality certificateof ceramic fibreandtheproducts.This standard applicable to bulk ceramic fibres,felts,blankets,modules,papers,boards,pre-formedrigidceramicfibreshapes,yarns,cloths,tapesropes,braidedropesetc.2 Normative references
The following normative documents contain provisions which,through reference in this text,consti-tute provisions of this standard.For dated references,subsequent amendments (excluding correc-tions),or revisions,of any of these publications do not apply to this standard.However parties toagreements based on this standard are encouraged to investigate the possibility of applying the mostrecent editions of the normative documents indicated below. For undated references, the latestedition of the normative document referred to applies.GB/T2828.1—2003,Samplingproceduresforinspectionbyattributes-Part1:Samplingschemesindexedbyacceptancequality limit（AQL)forlot-by-lotinspection（ISO2859-1:1999,IDT)GB/T30072006,Refractory—DeterminationofmoisturecontentGB/T3923.1-1997,Textiles—Tensileproperties of fabrics-Part 1:Determination of breakingforceand elongationatbreaking—Stripmethod(neqISO/DiS13934-1:1994)GB/T4743-1995,Textiles-Yarnfrompackages-Determinationoflineardensity（massperunitlength)bytheskeinmethod(neqIs02060-2:1993)GB/T 4984,Chemical analysis of refractories containing zirconiaGB/T5069,Chemical analysis of magnesia-alumina refractoriesGB/T6900-2006,Chemicalanalysisofalumina-silicarefractoriesGB/T3003—2006

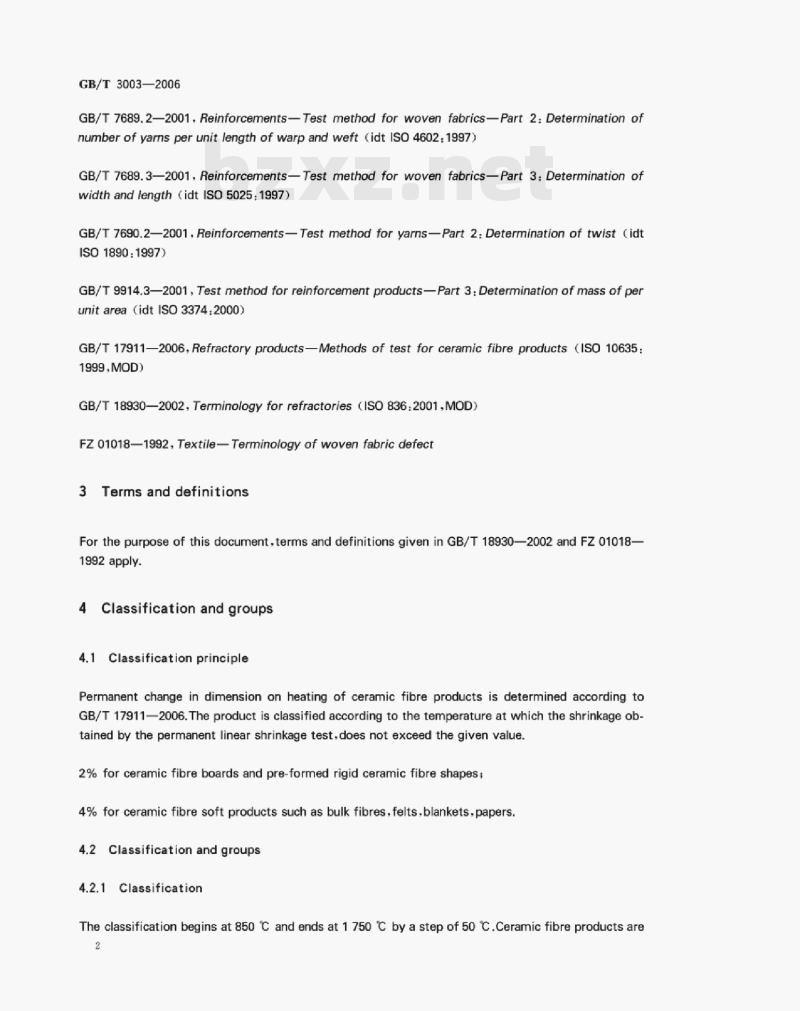

GB/T7689.2-2001.Reinforcements-Test methodfor woven fabrics-Part 2:Determination ofnumberofyarnsperunit lengthofwarpandweft(idtIS04602:1997）GB/T7689.3-2001,Reinforcements-—Test method for woven fabrics—Part 3:Determination ofwidthandlength（idtIso5025：1997)GB/T 7690.2—2001,Reinforcements-Test method for yarns-Part 2:Determination of twist (idtISO1890:1997)
GB/T9914.32o01,Test methodforreinforcement products-Part3:Determination of mass of perunitarea（idtIso3374.2000）
GB/T17911—2006,Refractoryproducts-Methods of testforceramic fibreproducts(ISO10635:1999MOD
GB/T18930—2002,Terminologyforrefractories（ISO836:2001,MOD）Fz o1018-1992,Textile-Terminologyof woven fabric defect3 Terms and definitions
For the purpose of this document.terms and definitions given in GB/T 189302002 and FZ 01018-1992apply.
Classification and groups
4.1 Classification principlePermanent change in dimension on heating of ceramic fibre products is determined according toGB/T17911-2006.The product is classified according to the temperature at which the shrinkage obtained by the permanent linear shrinkage test,does not exceed the given value.2% for ceramic fibre boards and pre-formed rigid ceramic fibre shapes;4%for ceramic fibre soft products such as bulk fibres,felts,blankets,papersClassification and groups
4.2.1 Classification
The classification begins at 850 and ends at 1750 ℃ by a step of 50℃.Ceramic fibre products are2
GB/T3003-2006
classified according to the temperatures at which their permanent linear shrinkages onheating satisfythe specifications in item 4.1.The classification temperatures are rounded downwards to the integralmultipleof50,seeTable1.
Table1-ClassificationofrefractoryceramicfibreproductsLevel
Groups
Test temperatureof PLC/C
Test temperatureof PLC/C
The main groups of ceramic fibre products are composed of the English name abbreviation and thefirst 3 digits of the classification temperature,secondary groups can be added after the main groups.see Table 2
Table2-GroupofceramicfibreproductsProduct name
Bulk ceramic fibre
Ceramic fibre felt
Ceramic fibre blanket
Ceramic fibre module
Ceramic fibre board
Pre-formed rigid ceramic fibre shapeCeramic fibre paper
Ceramic fibre yarn
Ceramic fibre cloth
Ceramic fibre tape (textile)Ceramic fibre twisted rope
Ceramic fibre braided rope
BF-level
CF-level-dimension
CB-level-kind-dimension
CM-level-kind-dimension
CBD-level-bulk density-dimensionCR-level
CP-level-thickness
CY-level-linear density (tex)CC-level-thickness
CT-level-thickness-width
CTR-level-diameter(-numberofstrands)CBR-level-diameter or side length3
GB/T3003—2006
Technical requirements
Refractorybulkceramicfibre
The group and technical index of Refractory bulk ceramic fibres shall be in accordance with the speci-fications in Table3.
Table 3-Groups and technical index of refractorybulk ceramicfibresShot content (by mass)/
BF-085
BF-090
BF-095
BF-100
BF-105
BF-110
BF-115
BF-120
BF-125
BF-130
BF-135
BF-140
BF-145
BF-150
BF-155
BF-160
Classification
temperature/c
(0.212mmsieve)
(classification
temperature x 24 h,
shrinkage value)
Chemical
composition
Offer test data
recommended service temperatures,in oxidizing or neutral atmosphere,are 10o C-20o C lower than the classifi-cation temperatures;in reduction atmosphere,are 200 C-350C lower than the classification temperatures.Ceramic fibre felt
The technical index of ceramic fibre felts shall be in accordance with the specifications in Table 44
CF-level-dimension
Table 4-Technical index of ceramic fibre feltsPLC/%
(classification temperature
x 24 h,shrinkage value)
Tensile strength/
Chemical
composition
GB/T3003—2006
Thermal conductivity
coefficient
Offer the test data of thermaloffer test
data(after
conductivityinclassificationtemperature range. The bulk
density,thickness and numberof layers of specimens shallbenoted
The water content of ceramic fibre felt (by mass) shall be ≤1%.The elastic resilience index shall be negotiated bythe supplier and the buyer.
NOTE recommended service temperatures are shown in Table 3.5.3CeramicfibreblanketandmoduleFibre blankets and their modules are classified into 3 kinds according to bulk density.The nominal bulkdensity,tolerance and tensile strength shall be in accordance with the specifications in Table 5.Groups and other chemical composition and physical properties of ceramic fibre blankets and modulesshall be in accordance with the specifications in Table 6.Special requirements shall be negotiated bythesupplierandthebuyer.
Size tolerance of ceramic fibre blankets shall be in accordance with the specifications in Table 7;the productsshall have consistent appearance without defects such as tearings,holes and sandwich layers.Table5-Classification,tensile strengthand bulk density of ceramicfibreblanketsandmodules
Ceramic fibre blanket
Classification
Bulkdensity/(kg*m)
Nominal value
Tolerance
85-114
115—149
150—185
Tensile strength/
Modules (metal anchors are
exclusive)
Bulk density/(kg *m-)
Nominal value
Tolerance
170200
201-234
235—255
GB/T3003—2006
Table6-Other chemical composition and physical properties of ceramicfibre blanketsandmodules此内容来自标准下载网
CB (or CM)-level
kind-dimension
(classification temperature
24 h,shrinkage value)
Elastic
resilience/%
recommended service temperatures are shown inTable3Chemical
composition
Offerdata
Thermal conductivity
coefficient
Offer the test data of thermal con-ductivity in classification temperature range. The bulk density,thickness and number of layers of spec.imens shall be noted
Table 7-Size tolerance of ceramic fibreblanketsThickness/mm
Thickness tolerance/mm
Lengthtolerance/%
Width tolerance/%
+4，-2
Ceramic fibre board and pre-formed rigid ceramic fibre shape5.4
Other specifications
Negotiated
Bulk density of ceramic fibre boards and pre-formed rigid ceramic fibre shapes shall be in accordance withthe specifications in Table 8.Special requirements shall be negotiated by the supplier and the buyer.Size tolerance of ceramic fibre boards shall be in accordance withthe specifications in Table 9,Size toleranceof pre-formed rigid ceramic fibre shapes shallbenegotiated byboththe supplier and the buyer.Ceramic fibre boards and pre-formed rigid ceramic fibre shapes are not allowed to have the followingdefects:holes,beehives,obvious cracks,and defect edges or corners with the sum of three sidelengthsbiggerthan60mm.
Table 8-Bulk density of ceramic fibre board and pre-formed rigid ceramic fibre shapesDimensions in kg \m-3
Ceramic fibre board
Nominal value
Tolerance
200—280
281-320
321-360
361-440
Pre-formed rigid ceramic fibre shapeNominal value
Tolerance
240—300
301-340
341-380
381-460
Table 9-Size tolerance of ceramic fibre boardsLengthtolerance/%
Ceramic fibre paper
Width tolerance/%
GB/T3003—2006
Thickness tolerance/mm
Ceramic fibre papers are divided into different kinds according to the classification temperature oftherawmaterial fibre.
Ceramic fibre papers shall have smooth surface and be rolled in order. The thickness and sizetolerance shall be in accordance with the specifications in Table 10,and other technical data shall beinaccordancewithTable11.
Table10-Groups andthickness ofceramicfibrepapersGroup
CP-level-thickness
Nominal value
Thickness/mm
Size tolerance
Recommended service
temperature
See Table3
Table11-Othertechnical indexes of ceramic fibrepapersItem
Tensile strength/kPa
Bulk density/(kgm-\)
Lol (by mass)/%
Shot content
5.6Ceramicfibreyarn
Thickness/mm
Classificationand Groups
≥2.0—3.0
≥3.0—4.0
≥4.0-5.0
Nominal value±20
Negotiated
Ceramic fibre yarns are divided into glass fibre (G) reinforced type and high temperature resistantstainless steel wire (S) reinforced type according to the raw material and reinforced type.The prod-ucts can be further classified and marked according to yarn linear density (tex) and reinforced type(GorS),seeTable13.
GB/T3003—2006
stainless steel wire(S) reinforced type according to the ceramic fibre yarns used.The products specification can be classified and marked according to the thickness and reinforced type (G or S),seeTable15.
Technical index and appearance requirementsAppearance of refractory ceramic fibre cloths shall be in accordance with Table 14.The technical index of refractory ceramic fibre cloths shall be in accordance with Table 15.The service tem-perature shall be offered.Special requirements shall be negotiated by the supplier and the buyer.Table 14-Appearance Requirements of refractory ceramic fibre clothsDefect
skeworbow
Broken selvedges or holes
Cracked warps and broken weftsArchedwarps
Greasy dirt or inclusions
Uneven orloose selvedges
Irregular spans
Requirement
The breadth is not allowed to exceed 100 mmNotallowed
The ones with length >30 mm shall be less than 2 in one meter and less than 5 inone roll
The ones more than 5 mm higher than cloth face shall be less than 2 in one meterand less than 5 in one roll
Not allowed
Affecting breadth is not allowedOne place in one meter is allowed;three places in one roll are allowedTable15—
Group and technical index of ceramic fibre clothsGroup
CC-level-1.5G
CC-level-2G
CC-level-3G
CC-level-5G
cc-level-1.5s
cc-level-2s
cc-level-3s
cc-level-5s
Thickness/m
Length/m
Mass per unit area/
750±10%
1000±10%
1400±8%
2300±8%
800±10%
1100±10%
1500±8%
2400±8%
Breaking force (50 mm)/N
≥1000
≥1200
The water content of cloths shall not exceed2mass%,and LOl shall not exceed 18mass%.Weft
≥250
≥600
The breadth tolerance of cloths with breadth of 1 000,1 200,and 1 500 mm is+20 mm.The thickness tolerance ofs +0.5 mm when thickness ≥2 mm and +0.3 mm when thickness <2 mm.The length thickness of cloths isclothsis
+0.5 m.The tolerance of warp density and weft density is ±2 pieces in 10 cm9
